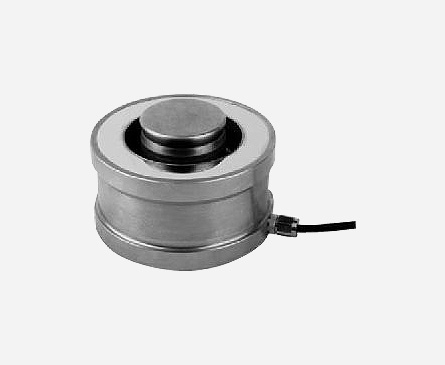

8. 柱式結構 CCLA
電子型錄下載
CCLA(DM).pdf| Rated load | 1、2.2、3.3、4.7、10、15、22、33、47、68、100、150、220、330、470t |
|---|---|
| Accuracy class | 0.1(1~150t); 0.3(220~470t) |
| Sensitivity | 2.85±0.015mV/V |
| Non-linearity | ±0.1%F.S(1~150t); ±0.3%F.S(220~470t) |
| Hysteresis error | ±0.05%F.S(1~150t) |
| Creep error(30min) | ±0.03%F.S |
| TC ZERO | ±0.02F.S/10℃ |
| TC SPAN | ±0.03F.S/10℃ |
| Input resistance | 1450±10Ω |
| Output resistance | 1405±5Ω |
| Insulation resistance | ≥5000MΩ |
| Nominal Temp Range | -10℃～+40℃ |
| Service Temp Range | -30℃～+70℃ |
| Safe load limit | 150%F.S |
| Breaking load | 200%F.S |
| Nominal of range excitation | 10~12 VDC |
| Protection Class | IP67 |
| Material | Alloy Steel; Stainless steel |
| Cable Length | 8m(1~4.7t); 12m(10~33t); 16m(68~470t) |
倉儲秤
卡車地磅、軸重秤
桶槽秤
