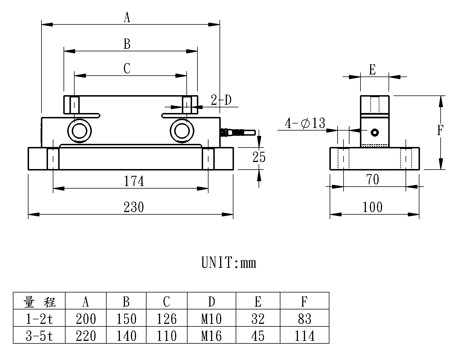

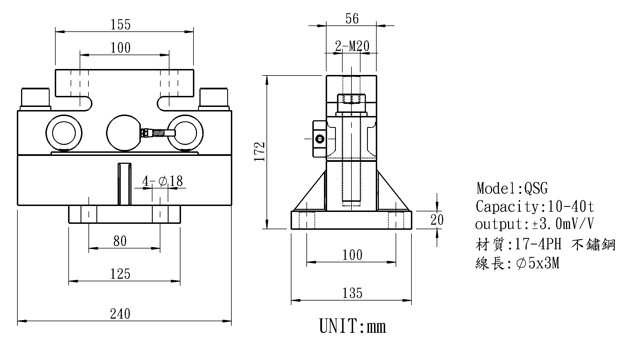

3. 雙剪樑結構 QSG
電子型錄下載
QSG.pdf| Rated load | 1、2、3、5、10、15、20、25、30、40t |
|---|---|
| Accuracy class | 0.2 |
| Sensitivity | 2.0±0.01mV/V |
| Non-linearity | ±0.2%F.S |
| Hysteresis error | ±0.2%F.S |
| Creep error(30min) | ±0.03%F.S |
| TC ZERO | ±0.03F.S/10℃ |
| TC SPAN | ±0.02F.S/10℃ |
| Input resistance | 750±10Ω |
| Output resistance | 702±3Ω |
| Insulation resistance | ≥5000MΩ |
| Nominal Temp Range | -10℃～+40℃ |
| Service Temp Range | -30℃～+70℃ |
| Safe load limit | 150%F.S |
| Breaking load | 200%F.S |
| Nominal of range excitation | 10~12 VDC |
| Protection Class | IP67 |
| Material | Alloy Steel |
| Cable Length | 8m(1t~15t), 10m(20t), 12m(25t), 14m(30t~40t) |
