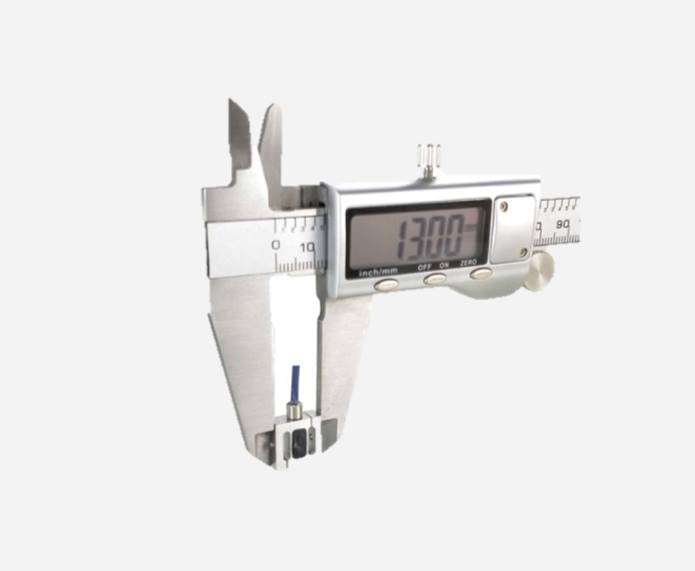

6. S微型拉壓式 ARI630B
電子型錄下載
ARI630B(DM).pdf| Rated load | 0.5、1、2、5、10 kg |
|---|---|
| Comprehensive error | ≤±0.15% |
| Non-linearity | 0.15% |
| Rated output | 1.0 / 2.0 ± 10%mV/V |
| Creep | ±0.05%F.S. / 30min. |
| Zero balance | ±2.0%F.S. |
| Input resistance | 350 ± 30Ω |
| output resistance | 350 ± 5Ω |
| Insulation resistance | ≥5000MΩ / 100VDC |
| Temp.effect on span | ±0.05F.S. / 10℃ |
| Temp.effect on zero | ±0.05F.S. / 10℃ |
| Compensated temp range | -10～60℃ |
| Use temp range | -20～80℃ |
| Excitasion voltage | 5～12V |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Defend grade | IP66 |
