8. ARI751A

  • 8. ARI751A
8. ARI751A
8. ARI751A
特色：
  1. 專用不銹鋼材質
  2. 重復性
  3. 可靠性高
  4. 長期穩定性好
  5. 小身材大量程
  6. 廣泛應用於壓力試驗機、工件壓裝、材料試驗機等各種工業自動化設備

電子型錄下載

ARI751A(DM)0920.pdf

Rated load 50、100、200、300、500 kg  /  1、2、3、5、6、10、15 t
Rated output 1.0-0.2±0.05mV/V
Zero balance ±2%F.S.
Non-linearity 0.3%F.S.
Hysteresis 0.1%F.S.
Repeatability 0.1%F.S.
Creep (30min.) 0.1%F.S.
Temp.effect on output 0.05%F.S. / 10℃
Temp.effect on zero 0.05%F.S. / 10℃
Impedance 700Ω
Insulation resistance ≥5000MΩ / 100VDC
Excitasion voltage 5~15V
Operating temp range -20～80℃
Safe overload 150%F.S.
Maximum overload 200%F.S.
Cable specifications φ5x2m

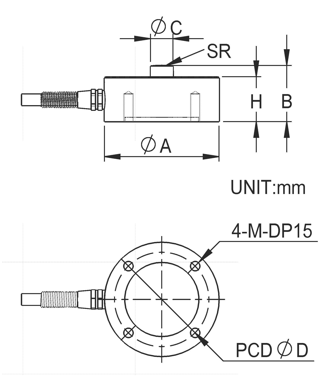

proimages/Load_Cell/ARI751A尺寸0920.pngproimages/Load_Cell/ARI751A(CAP)0920.png
