12. ARI760

  • 12. ARI760
12. ARI760
12. ARI760
特色：
  1. 採用感應器專用材質打造的微型感應器
  2. 適用於各種小空間測力
  3. 廣泛應用於工業、研發等領域的測量和控制

電子型錄下載

ARI760(DM).pdf

Rated load 5、10、20、30、50、100 kg
Rated output 1.0~2.0 mV/V
Zero balance ±2 F.S.
Non-linearity 0.5% F.S.
Hysteresis 0.5% F.S.
Repeatbility 0.3% F.S.
Creep(30min.) ±0.1% F.S.
Temp.effect on output ±0.5 F.S. / 10℃
Temp.effect on zero ±0.5 F.S. / 10℃
Impedance 350/500Ω
Insulation resistance ≥5000MΩ / 100VDC
Excitasion voltage 5～10V
Operating temp range -20～80℃
Safe overload 120%F.S.
Ultimate overload 200%F.S.
Cable specifications Φ2x1m

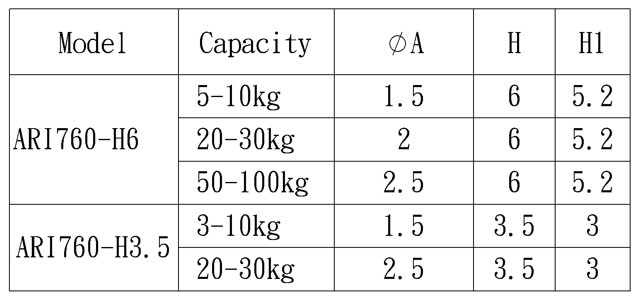

proimages/Load_Cell/ARI760尺寸.jpgproimages/Load_Cell/ARI760(CAP).jpg
