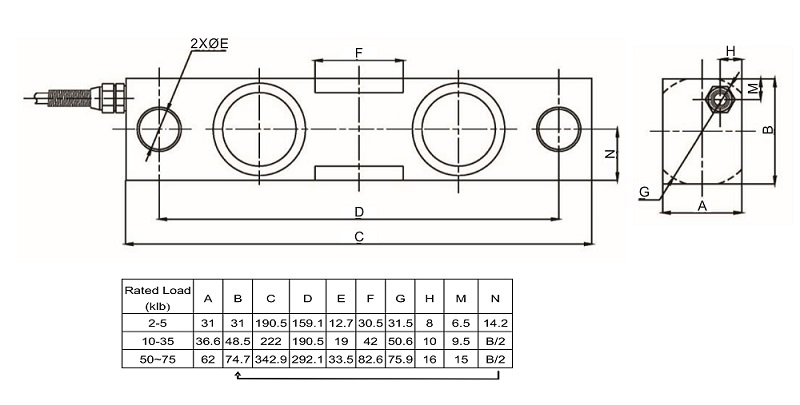

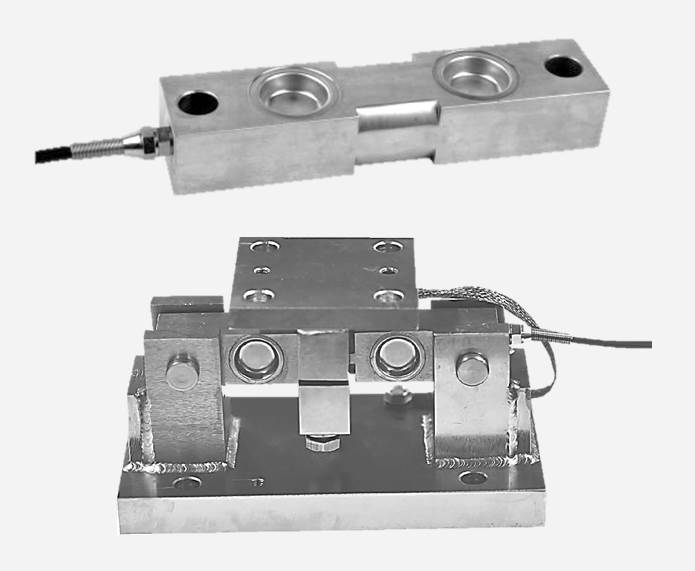

4. 雙剪樑結構 DELC
電子型錄下載
DELC.pdf| Rated load | 2、3、5、10、15、20、25、35、50、75klb |
|---|---|
| Accuracy class | 0.05% |
| Sensitivity | 3.0±0.003mV/V |
| Non-linearity | ±0.05%F.S |
| Hysteresis error | ±0.05%F.S |
| Creep error(30min) | ±0.02%F.S |
| TC ZERO | ±0.02F.S/10℃ |
| TC SPAN | ±0.02F.S/10℃ |
| Input resistance | 750±10Ω |
| Output resistance | 702±5Ω |
| Insulation resistance | ≥5000MΩ |
| Nominal Temp Range | -10℃～+40℃ |
| Service Temp Range | -30℃～+70℃ |
| Safe load limit | 150%F.S |
| Breaking load | 200%F.S |
| Nominal of range excitation | 10~12 VDC |
| Protection Class | IP67 |
| Material | Alloy Steel; Stainless steel |
| Cable Length | 6m(2~5klb), 10m(10~35klb), 16m(50~75klb) |
| Diameter | Φ5(2~5klb), Φ6(10~75klb) |
