ARI6 _ Aluminium single-point load cell

  • 荷重元-鋁合金單點式 ARI6
荷重元-鋁合金單點式 ARI6

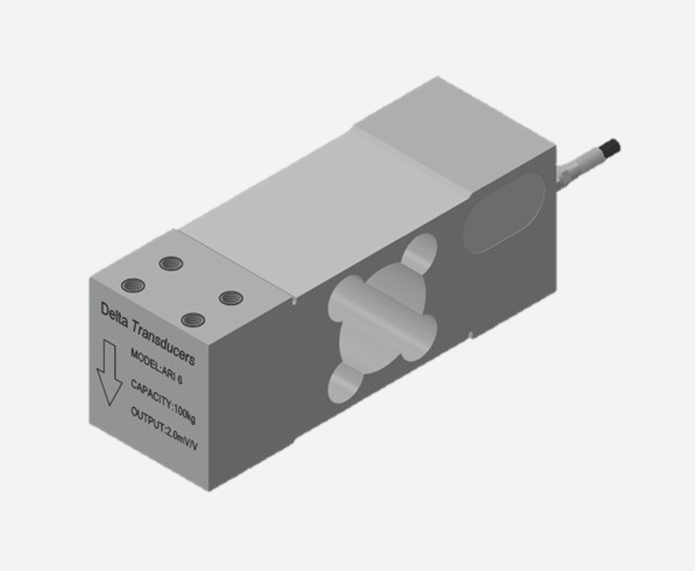

ARI6 _ Aluminium single-point load cell
Features：
  1. Aluminium single-point load cell is capable measuring weights from a single point. It offers a high level of accuracy and features an internal thermal compensation that corrects output drifts due to ambient temperature variations.
  2. Aluminium single-point load cell has been developed for use in platform scales for low capacity weighing applications in food, chemical and pharmaceutical industries. Aluminium single-point load cell may be mounted in the center of or under the platform.

Additional files

ARI6DM.pdf

Rated load 60、100、200、300、500、800 kg
Rated output 2.0mV/V±10%
Zero balance ±0.0200 mV/V
Non-linearity 0.017%R.O.
Hysteresis 0.017%R.O.
Repeatability 0.017%R.O.
Creep(30min) 0.017%R.O.
Safe overload 150％R.O.
Max. overload 200％R.O.
Temperature effect on output 0.0015%R.O. / ℃
Temperature effect on zero 0.002%R.O. /℃
Input resistance 410±15Ω
Output resistance 350±5Ω
Insulation resistance ≥5000MΩ(50V DC)
Recommended excitation 5~120VDC
Maximum excitation 15 VDC
Operating temperature range -20℃～60℃
Cable φ5 x 2m

proimages/Load_Cell/ARI6尺寸.jpg
